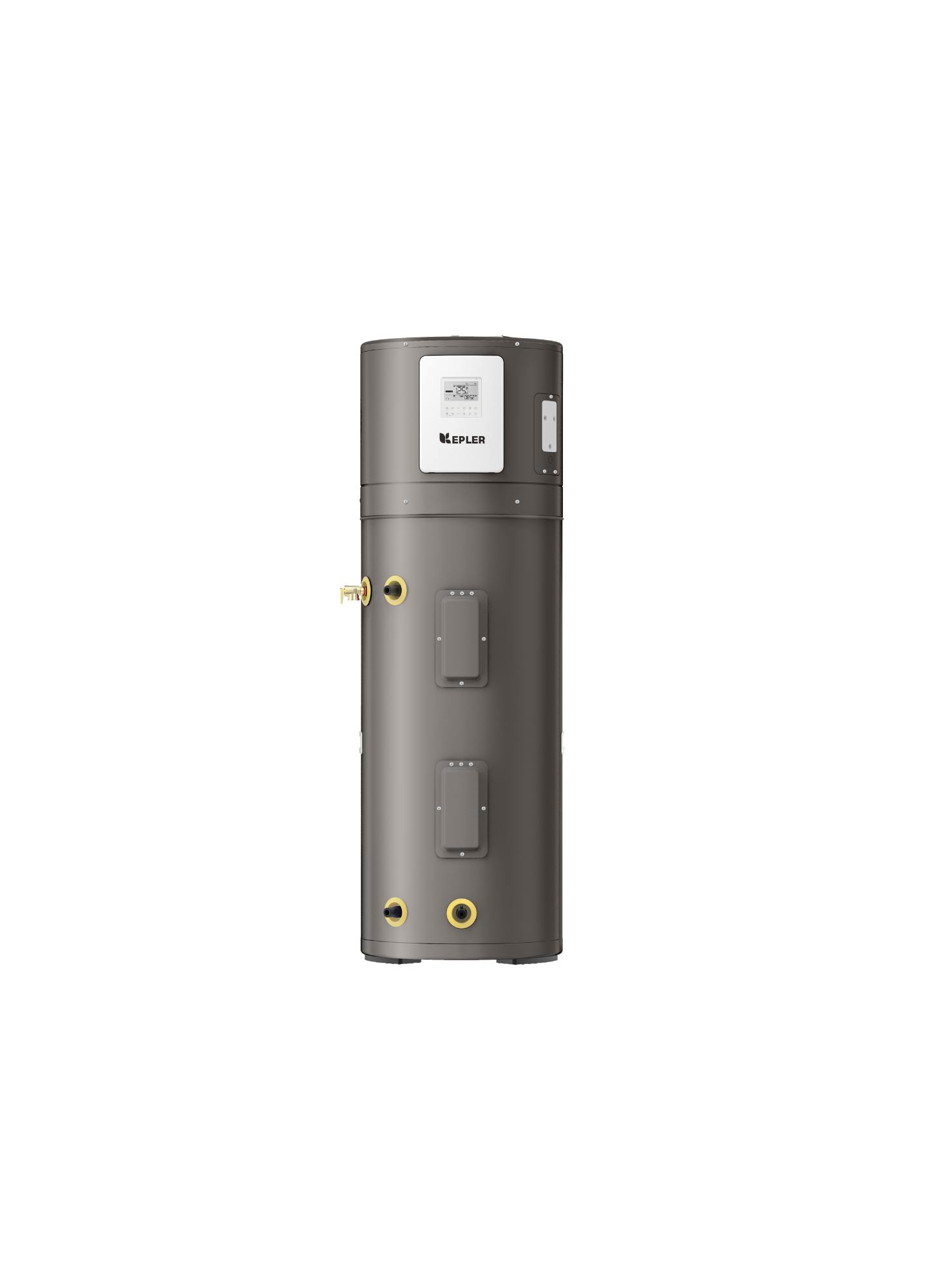

For homes or small businesses in need of a dependable and energy-efficient water heating system, the SMART 50 Gallon Water Heater is the ideal choice. With a first-hour rating of up to 69 gallons, this unit delivers a large volume of hot water quickly, ensuring a steady supply during peak demand periods, such as mornings or when hosting guests. Its Uniform Energy Factor (UEF) of 3.75 demonstrates exceptional energy efficiency, allowing you to save on energy bills without compromising performance. Built for long-term reliability, the SMART 50 Gallon Water Heater provides optimal comfort while maintaining minimal energy consumption.
Efficient Air Source Heat Transfer
Our environmentally conscious air conditioner features an innovative ECO Mode designed to maximize energy efficiency while maintaining superior comfort. With the press of a button, this mode initiates an 8-hour low-energy cycle, reducing power consumption by up to 60% compared to standard operation. This advanced feature promotes sustainability, cost savings, and eco-friendly performance, offering a smarter and more responsible cooling solution.
Simple and Hassle-Free Installation
This function provides a significant boost to both cooling and heating performance for a limited period, allowing the room to quickly reach the desired temperature. It ensures rapid and efficient climate control, delivering immediate comfort in any environment.
Universal Parts
When Silent Mode is activated, the indoor fan operates at an ultra-low speed, significantly reducing noise levels to an almost imperceptible level. This feature guarantees a peaceful and comfortable environment, free from disruptive operational sounds.
AHRI# | 214731283 | ||
Capacity | 80 Gallon | ||
Product Model | AZMCHW-80VN3A | ||
Power Supply | (V, Ph, Hz) | 208~240V,1Ph,60Hz | |
Energy Specification | Rated Gallon Capacity | (Gallon) | 74 |
Uniform Energy Factor (UEF) | 4.00 | ||
First Hour Rating (FHR) | (Gallon) | 91 | |
Water Outlet Temperature Range | (Deg. ℉) | 109~149 | |
Upper Element Wattage | (W) | 4500(240V) | |
Lower Element Wattage | (W) | 4500(240V) | |
Compressor Capacity | (W) | 1500 | |
Total Unit Wattage (input) | (W) | 5500 | |
Cold Climate Efficiency (CCE) | 3.0 | ||
Recovery In G.P.H. 90˚ F Rise | 27.5 | ||
Heat pump ambient operating range | (Deg. ℉) | 37~109 | |
Element ambient operating range | (Deg. ℉) | 5~115 | |
Sound | (dBA) | 49.5 | |
Unit Specification | Body Height | (inch) | 74.2 |
Body Diameter (inch) | (inch) | 25.60 | |
Body Weight | (lbs) | 290 | |
Ship Length (inch) | (inch) | 30.3x29.1 | |
Ship Height (inch) | (inch) | 83.1 | |
Ship Weight (lbs) | (lbs) | 358.0 | |
Inlet Water Connection Size | (inch) | 3/4 | |
Outlet Water Connection Size | (inch) | 3/4 | |
Drainage Hose | (inch) | 3/4 | |
Installation Clearance (back) | (inch) | 0 | |
Installation Clearnace (side) | (inch) | 6 | |
Installation Clearnace (top) | (inch) | 20 | |
Refrigerant Type | R134a | ||
Refrigerant Charge | oz | 18.34 | |
Certification | Energy Star Certified |
