Description
xThe Kepler28b delivers top-tier heating and cooling with an impressive SEER2 rating of up to 28.0 for maximum energy efficiency. Designed for rapid cooling, long airflow distances, and ultra-quiet operation, it ensures year-round comfort. Featuring ECO Mode for up to 60% energy savings and flexible installation options, this HVAC system is the perfect blend of performance, convenience, and sustainability.
Eco-Friendly Mode
Our energy-efficient air conditioner features an innovative ECO Mode, designed to minimize power consumption while maintaining optimal comfort. With the press of a button, this mode initiates an 8-hour energy-saving cycle, reducing energy usage by up to 60% compared to standard operation. This smart technology enhances sustainability, efficiency, and cost savings, ensuring a greener cooling solution.
Quick Cool/Heat Function
This feature delivers a powerful boost to both cooling and heating performance for a limited time, allowing the room to reach the desired temperature rapidly. It ensures swift climate adjustment, providing instant comfort in any environment.
Whisper-Quiet Operation
Activating Silent Mode allows the indoor fan to function at an ultra-low speed, reducing noise levels to a near-imperceptible whisper. This feature creates a serene and undisturbed atmosphere, ensuring ultimate comfort without the intrusion of operational sounds.
Specifications
x| AHRI# | 213608172 | ||
| Capacity | 6K | ||
| Indoor | IDUMSEPB-06HRFN1MY5W | ||

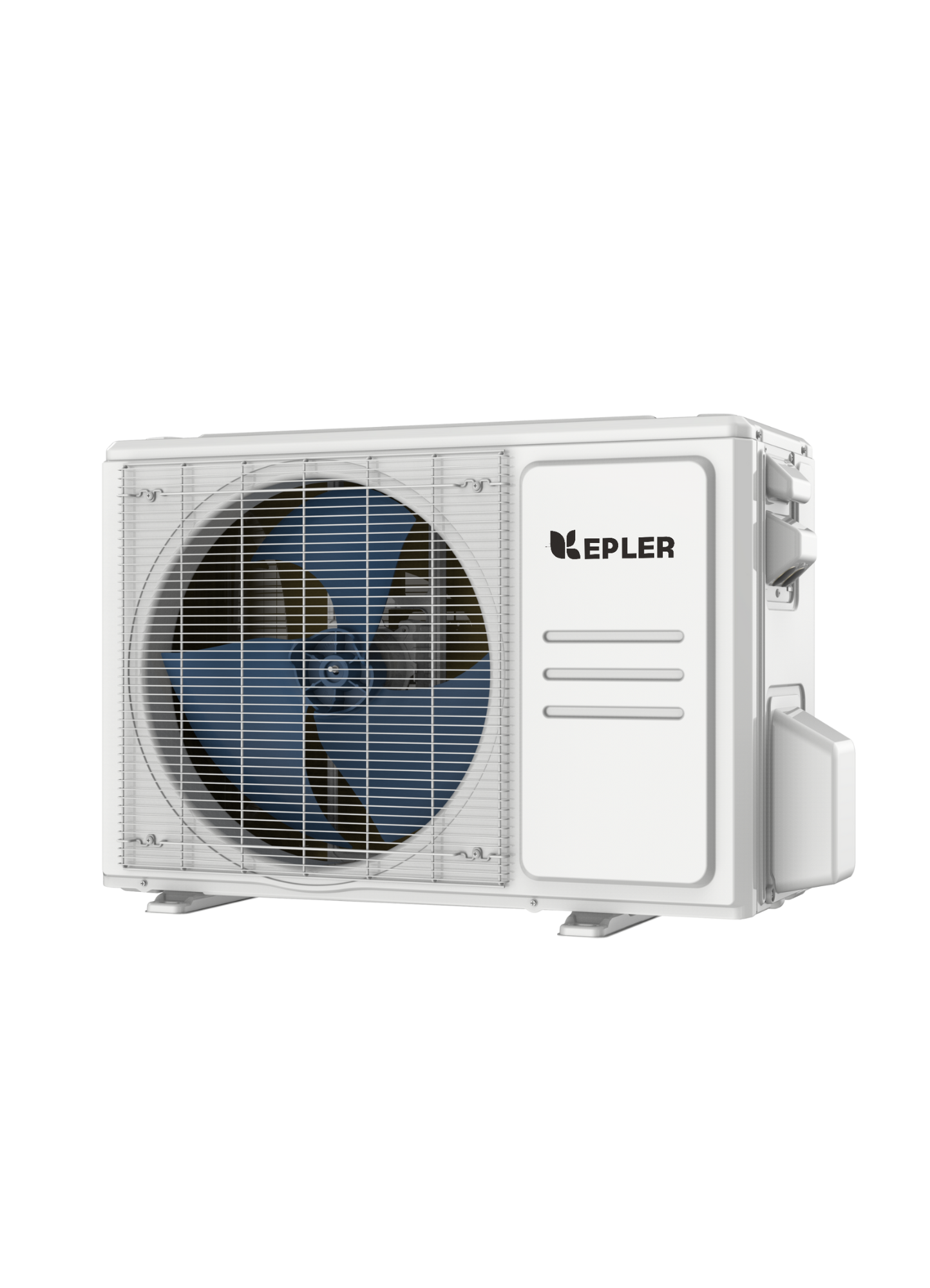

| Outdoor | ODUMOX230-09HFN1MW5W | ||
| Power supply | V-Ph-Hz | 208/230V,1Ph,60Hz | |
| Power supply | Voltage range | V | 187-253 |
| Cooling (Standard conditions) | Capacity (range) | Btu/hr | 6000(3400~12000) |
| Input | W | 380(166~1008) | |
| Current | A | 3.3(0.72~4.38) | |
| EER2 | Btu/hr/W | 15.8 | |
| SEER2 | Btu/hr/W | 26.5 | |
| Heating (Standard conditions) | Capacity (range) | Btu/hr | 7000(3300~11500) |
| Input | W | 449(241~1200) | |
| Current | A | 3.92(1.05~5.2) | |
| COP | W/W | 3.92 | |
| HSPF4 | Btu/hr/W | 13.6 | |
| HSPF5 | Btu/hr/W | 10 | |
| Moisture removal | L/h | 0.15 | |
| MINIMUM CIRCUIT AMPACITY (Indoor) | A | 3 | |
| MAX. FUSE (Indoor) | A | 15 | |
| Indoor air flow (Turbo/Hi/Mi/Lo) | CFM | 364.71/317.65/217.65/167.65 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 36/32/23 | |
| Indoor unit | Dimension (W*D*H) | mm | 855x231x297 |
| Dimension (W*D*H) | inch | 33.66x9.09x11.69 | |
| Packing (W*D*H) | mm | 920x310x370 | |
| Packing (W*D*H) | inch | 36.22x12.20x14.57 | |
| Net/Gross weight | kg | 10.3/13.1 | |
| Net/Gross weight | lb | 22.71/28.88 | |
| MINIMUM CIRCUIT AMPACITY (Outdoor) | A | 13 | |
| MAX. FUSE (Outdoor) | A | 15 | |
| Outdoor air flow | CFM | 1294.12 | |
| Outdoor noise level | dB(A) | 53.5 | |
| Throttle type | EXV | ||
| Outdoor unit | Dimension (W*D*H) | mm | 765x303x555 |
| Dimension (W*D*H) | inch | 30.12x11.93x21.85 | |
| Packing (W*D*H) | mm | 887x337x610 | |
| Packing (W*D*H) | inch | 34.92x13.27x24.02 | |
| Net/Gross weight | kg | 28.9/31.3 | |
| Net/Gross weight | lb | 63.71/69.00 | |
| Refrigerant type | R410A | ||
| Connection wiring | 14AWG*4 | ||
| Thermostat type | Remote Control | ||
| Energy Star Certified | ccASHP | ||
