The Kepler28b delivers top-tier heating and cooling with an impressive SEER2 rating of up to 28.0 for maximum energy efficiency. Designed for rapid cooling, long airflow distances, and ultra-quiet operation, it ensures year-round comfort. Featuring ECO Mode for up to 60% energy savings and flexible installation options, this HVAC system is the perfect blend of performance, convenience, and sustainability.
Eco-Friendly Mode
Our energy-efficient air conditioner features an innovative ECO Mode, designed to minimize power consumption while maintaining optimal comfort. With the press of a button, this mode initiates an 8-hour energy-saving cycle, reducing energy usage by up to 60% compared to standard operation. This smart technology enhances sustainability, efficiency, and cost savings, ensuring a greener cooling solution.
Quick Cool/Heat Function
This feature delivers a powerful boost to both cooling and heating performance for a limited time, allowing the room to reach the desired temperature rapidly. It ensures swift climate adjustment, providing instant comfort in any environment.
Whisper-Quiet Operation
Activating Silent Mode allows the indoor fan to function at an ultra-low speed, reducing noise levels to a near-imperceptible whisper. This feature creates a serene and undisturbed atmosphere, ensuring ultimate comfort without the intrusion of operational sounds.
AHRI# | 213608177 | ||
Capacity | 33K | ||
Indoor | IDUMSEPD-33HRFN1MSR0W | ||
Outdoor | ODUMOD30-33HFN1MSR0W | ||
Power supply | V-Ph-Hz | 208/230V,1Ph,60Hz | |
Power supply | Voltage range | V | 187-253 |
Cooling (Standard conditions) | Capacity (range) | Btu/hr | 33000(15000~39700) |
Input | W | 2750(440~3825) | |
Current | A | 18.0(3.1~17.0) | |
EER2 | Btu/hr/W | 12 | |
SEER2 | Btu/hr/W | 19.5 | |
Heating (Standard conditions) | Capacity (range) | Btu/hr | 35000(19000~40000) |
Input | W | 3290(1250~3920) | |
Current | A | 20.5(8.4~17.4) | |
COP | W/W | 3.12 | |
HSPF4 | Btu/hr/W | 10 | |
HSPF5 | Btu/hr/W | 8 | |
Moisture removal | L/h | 3.85 | |
MINIMUM CIRCUIT AMPACITY (Indoor) | A | 3 | |
MAX. FUSE (Indoor) | A | 15 | |
Indoor air flow (Turbo/Hi/Mi/Lo) | CFM | 894.12/770.59/600.00/423.53 | |
Indoor noise level (Hi/Mi/Lo) | dB(A) | 52/46/35 | |
Indoor unit | Dimension (W*D*H) | mm | 1196x279x370 |
Dimension (W*D*H) | inch | 47.09x10.98x14.57 | |
Packing (W*D*H) | mm | 1280x360x455 | |
Packing (W*D*H) | inch | 50.39x14.17x17.91 | |
Net/Gross weight | kg | 19.7/25 | |
Net/Gross weight | lb | 43.43/55.11 | |
MINIMUM CIRCUIT AMPACITY (Outdoor) | A | 36 | |
MAX. FUSE (Outdoor) | A | 40 | |
Outdoor air flow | CFM | 2235.29 | |
Outdoor noise level | dB(A) | 63 | |
Throttle type | EXV+Throttle valve | ||

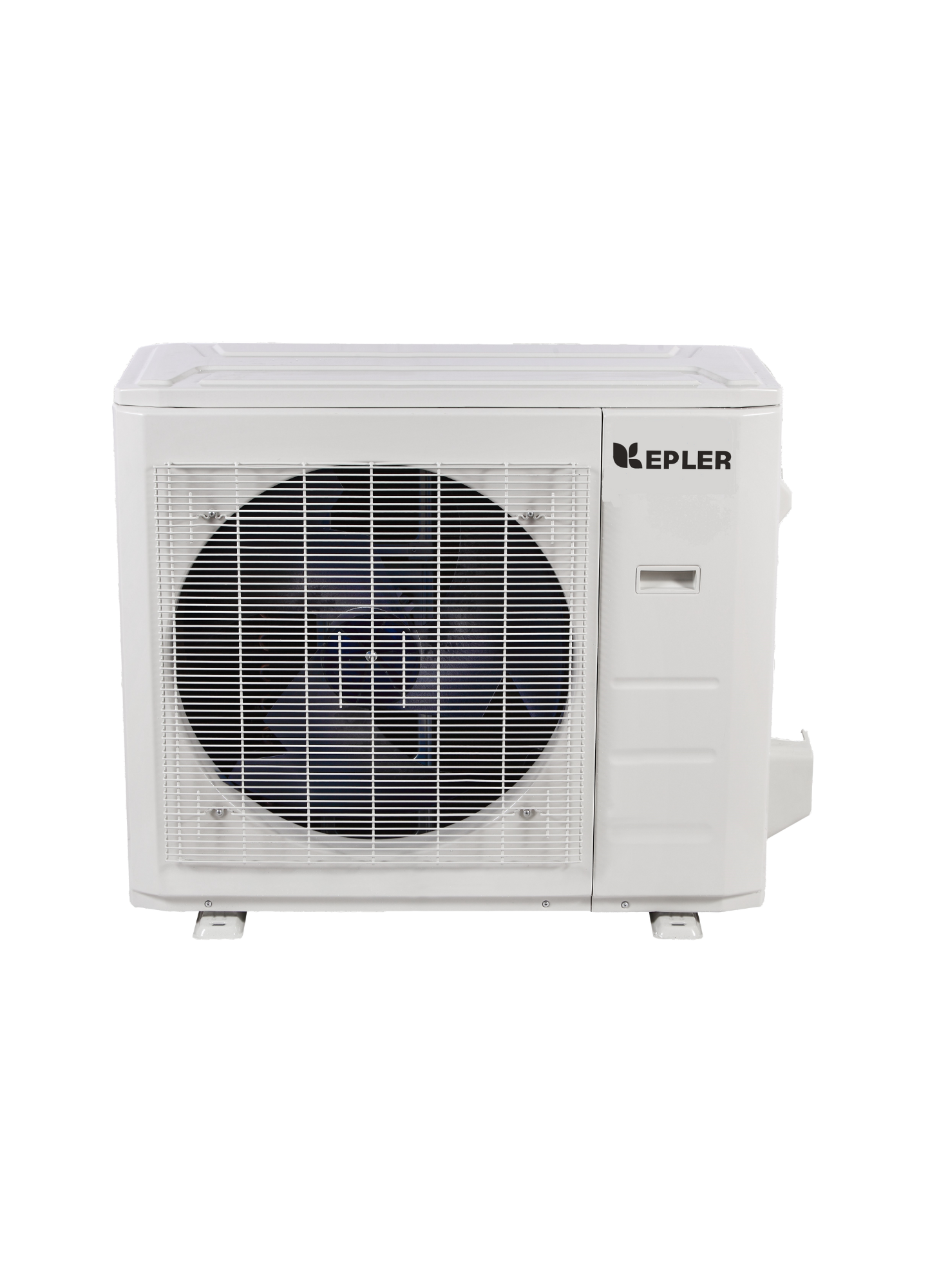

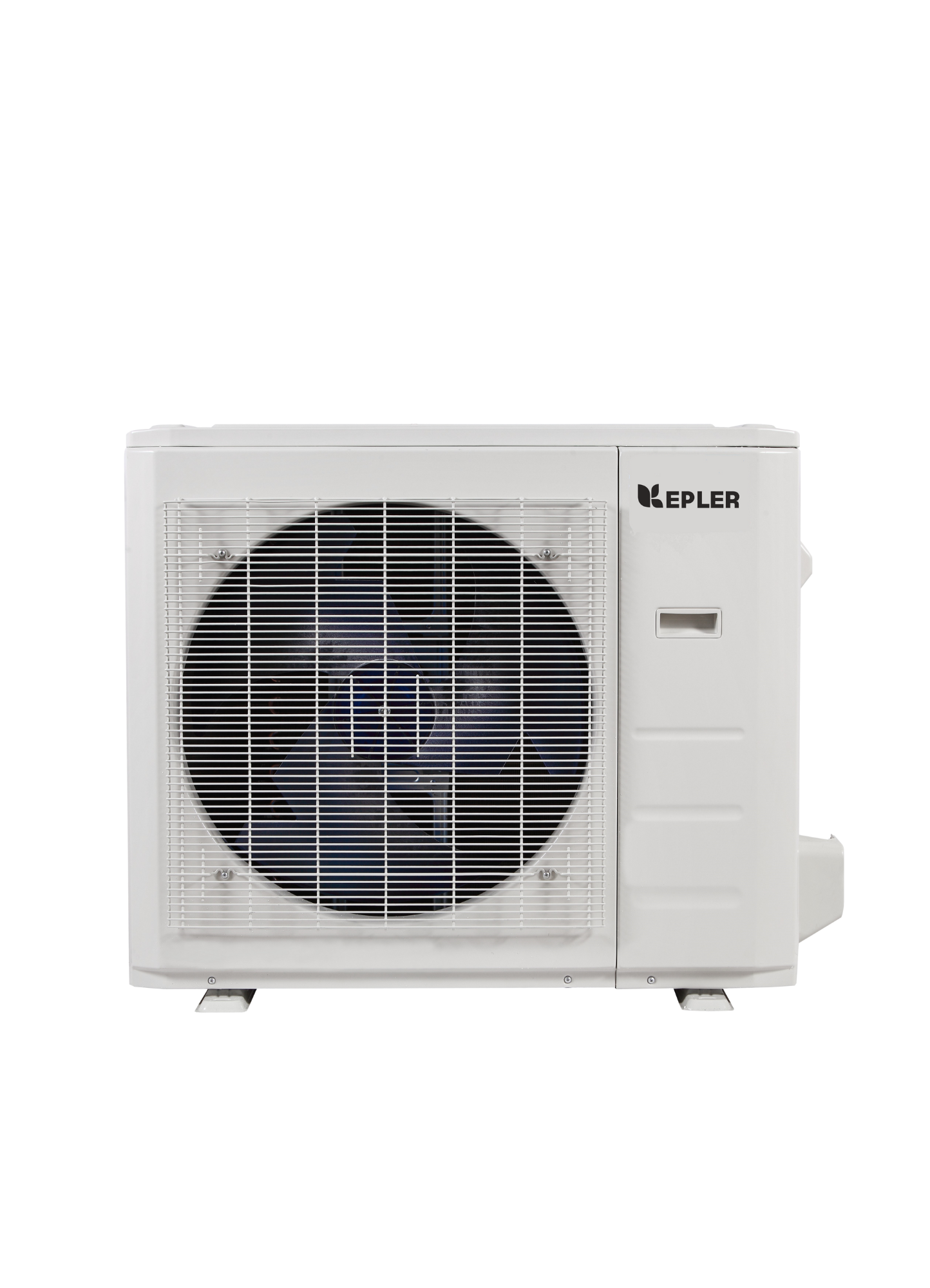

Outdoor unit | Dimension (W*D*H) | mm | 946x410x810 |
Dimension (W*D*H) | inch | 37.24x16.14x31.89 | |
Packing (W*D*H) | mm | 1090x500x885 | |
Packing (W*D*H) | inch | 42.91x19.69x34.84 | |
Net/Gross weight | kg | 72.5/76.6 | |
Net/Gross weight | lb | 159.83/168.87 | |
Refrigerant type | R410A | ||
Connection wiring | 14AWG*4 | ||
Thermostat type | Remote Control | ||
Energy Star Certified | ccASHP |
